Product Summary

The TLV990-28PFB is a complete CCD signal processor/digitizer designed for digital still camera and PC camera applications. The TLV990-28PFB performs all the analog-processing functions necessary to maximize the dynamic range, corrects various errors associated with the CCD sensor, and then digitizes the results with an on-chip high-speed analog-to-digital converter (ADC). The key components of the TLV990-28PFB include: an input clamp circuit for CCD signal, a correlated double sampler (CDS), a programmable-gain amplifier (PGA) with 0 to 36-dB gain range, two internal digital-to-analog converters (DAC) for automatic or programmable optical black level and offset calibration, a 10-bit, 28-MSPS pipeline ADC, a parallel data port for easy microprocessor interface, a serial port for configuring internal control registers, two additional DACs for external system control, and internal reference voltages.

Parametrics

Absolute maximum ratings over operating free-air temperature: (1)Supply voltage, AVDD, DVDD, DIVDD:-0.3 V to 6.5 V; (2)Analog input voltage range:-0.3 V to AVDD+0.3 V; (3)Digital input voltage range:-0.3 V to DVDD+0.3 V; (4)Operating virtual junction temperature range, TJ:-40°C to 150°C; (5)Operating free-air temperature range, TA:-20°C to 75°C; (6)Storage temperature range, Tstg:-65°C to 150°C; (7)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds:260°C.

Features

Features: (1)Single-Chip CCD Analog Front-End; (2)10-Bit, 28-MSPS, Single 3-V Supply Operation A/D Converter; (3)Very Low Power: 150-mW Typical, 2-mW Power-Down Mode; (4)Differential Nonlinearity Error: < ±0.5 LSB Typical; (5)Integral Nonlinearity Error: < ±0.75 LSB Typical; (6)programmable Gain Amplifier (PGA) With 0-dB to 36-dB Gain Range (0.045 dB/Step); (7)Automatic or Programmable Optical Black Level and Offset Calibration With Digital Filter and Bad Pixel Limits; (8)Additional DACs for External Analog Setting; (9)Serial Interface for Register Configuration; (10)Internal-Reference Voltages; (11)48-Pin TQFP Package application; (12)Digital Still Camera; (13)Video Camcorder.

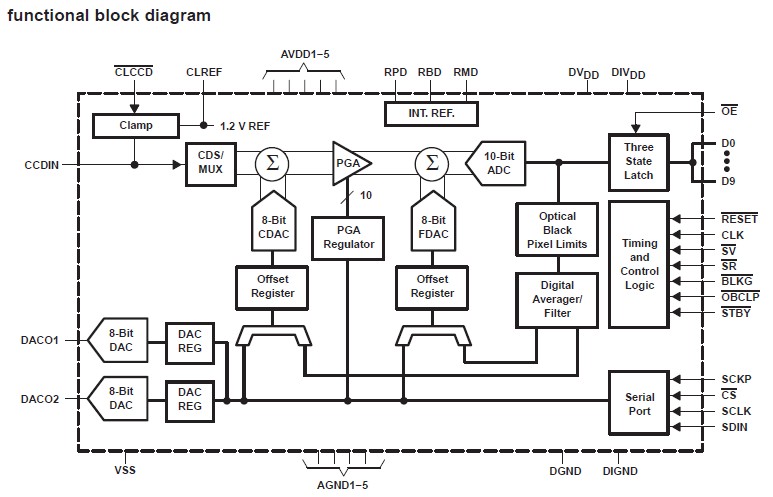

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

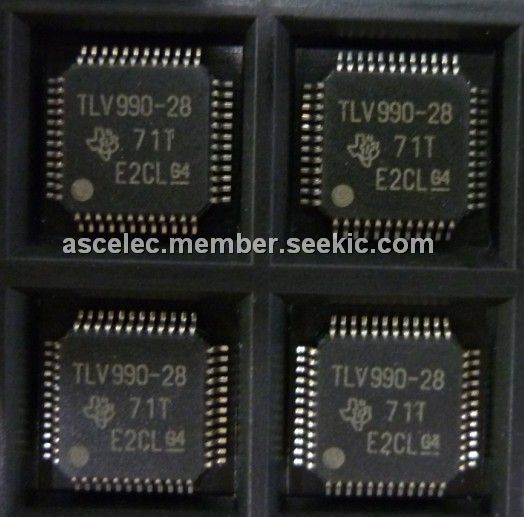

TLV990-28PFB
TLV990-28PFB

Texas Instruments

Video A/D Converter ICs 3-V 10-Bit 28-MSPS Area CCD

Data Sheet

0-1: $5.11
1-25: $4.30
25-100: $3.95
100-250: $3.60
TLV990-28PFBG4
TLV990-28PFBG4

Texas Instruments

Video A/D Converter ICs 3-V 10-Bit 28-MSPS Area CCD

Data Sheet

0-148: $3.95
148-250: $3.60
250-500: $3.37
500-1000: $3.09
