Product Summary

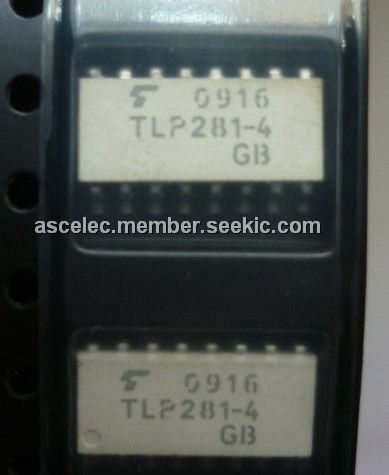

The TLP281-4GB is one member of the TLP281 family which designed as one kind of small and thin coupler,suitable for surface mount assembly in applica-tions such as PCMCIA Fax modem,programmable controllers.It consists of photo transistor,optically coupled to a gallium arsenide infrared emitting diode.

Parametrics

Absolute maximum ratings of the TLP281-4GB can be summarized as:(1)forward current:50 mA;(2)forward current derating:-0.7(Ta≥53°C) or -0.5 (Ta ≥25°C) mA/°C;(3)pulse forward current:1 A;(4)reverse voltage:5 V;(5)junction temperature:125 °C;(6)collector-emitter voltage:80 V;(7)emitter-collector voltage:7 V;(8)collector current:50 mA;(9)collector power dissipation:150 or 100 mW;(10)junction temperature:125°C;(11)operating temperature range:-55 to 100 °C;(12)storage temperature range:-55 to 125 °C;(13)lead soldering temperature:260 (10s) °C;(14)total package power dissipation:200 or 170 mW.

Features

Features:(1)collector-emitter voltage:80 V (min);(2)current transfer ratio:50% (min);(3)current transfer ratio rank GB:100% (min);(4)isolation voltage:2500 Vrms (min);(5)UL recognized:UL1577,file No. E67349;(6)BSI approved:BS EN 60065: 1994,BS EN 41003: 1997 Certificate No. 8143, 8144.

Diagrams
