Product Summary

The TLA-6T118LF-T is a pulse transformer.

Parametrics

TLA-6T118LF-T absolute maximum ratings: (1)Pulse transformer: 2; (2)Common-mode choke: 2; (3)Port: 1; (4)Temperature ranges, Operating: 0 to +70℃; (5)Storage: –40 to +85℃; (6)Withstanding voltage Erms:1500V[60s].

Features

TLA-6T118LF-T features: (1)Product conforming to RoHS directive; (2)Can be mounted with lead-free solder (260℃ max.); (3)16-pin SMD package(1.27mm=50mil pin pitch); (4)Excellent common mode noise suppression; (5)Inductance is 350μH or greater (f=100kHz, DC bias=8mA); (6)Using the high-quality and wide-band ferrite cores for LAN.

Diagrams

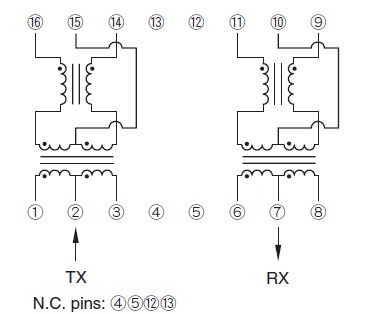

TLA-6T118LF-T circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TLA-6T118LF-T
TLA-6T118LF-T
TDK
Transformers Audio & Signal 10/100BASE-TX PT*2
Data Sheet
0-1: $3.04
1-1000: $2.88
1000-2000: $2.62
