Product Summary

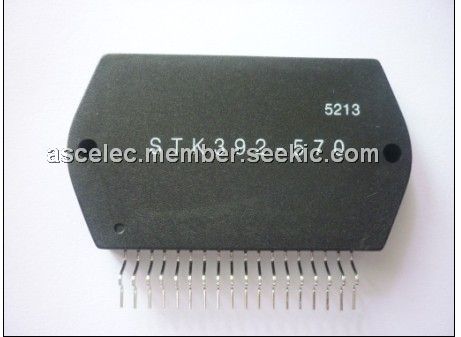

The STK392-570 is a convergence correction circuit IC for video projectors. It incorporates three output amplifiers in a single package, malting possible the construction of CRT horizontal and vertical convergence correction output circuits for each of the RGB colors using just two hybrid ICs. The output circuits use a class-B configuration.
Parametrics

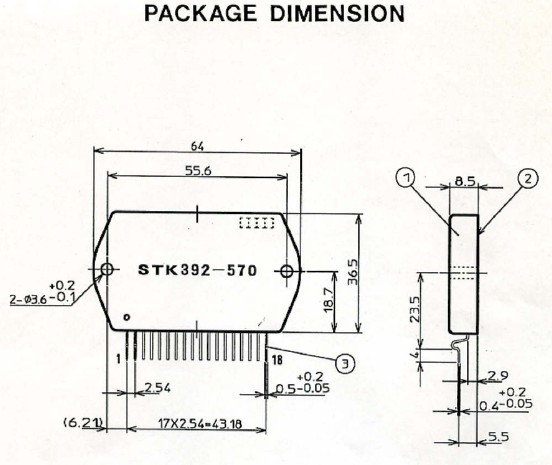

Absolute maximum ratings: (1)supply voltage, Vccmax: ±50v; (2)collector current, Icmax at TR9, 10, 17, 18, 25, 26: ±8A; (3)thermal resistance at TR9, 10, 17, 18, 25, 26: 2.0℃/W; (4)junction temperature, Tj max: 150℃; (5)operating substrate temperature:125℃; (6)storage temperature:-30 to 125℃; (7)18 pins(see attached case outline dimension); (8)convergence correction circuit 3 channels and output muting circuit.
Features
Features:(1)3 output amplifier circuits in a single package (22-pin); (2)high absolute maximum supply voltage (Vcc max=±38V); (3)low thermal resistance(θj-c=2.6℃/W); (4)high temperature stability (Tc max=125℃); (5)Separate predriver and output stage supplies; (6)output stage supply switching for high-performance designs; (7)18 pins(see attached case outline dimension); (8)convergence correction circuit 3 channels and output muting circuit; (9)large lineup of family devices (STK392-000 series) to cover the range from general applications to high-class applications using a single PCB.
