Product Summary
The SFH615AGB-X009T features a large assortment of current transfer ratio, low coupling capacitance and high isolation voltage. The coupler has a GaAs infrared emitting diode emitter, which is optically coupled to a silicon planar phototransistor detector, and is incorporated in a plastic DIP-4 package. The coupling device is designed for signal transmission between two electrically separated circuits. The SFH615AGB-X009T is end-stackable with 2.54 mm lead spacing. Creepage and clearance distances of > 8 mm are achieved with option 6. This version complies with 60950 (DIN VDE 0805) for reinforced insulation up to operation voltage of 400 VRMS or DC.
Parametrics
SFH615AGB-X009T absolute maximum ratings: (1)Reverse voltage VR: 6.0 V; (2)DC Forward current IF: 60 mA; (3)Surge forward current tp ≤ 1.0 ms IFSM: 2.5 A; (4)Power dissipation Pdiss: 100 mW; (5)Collector-emitter voltage VEC: 70 V; (6)Emitter-collector voltage VCE: 7.0 V; (7)Collector current IC: 50 mA; tp ≤ 1.0 ms IC: 100 mA; (8)Total power dissipation Pdiss: 150 mW; (9)Isolation test voltage between emitter and detector: VISO 5300 VRMS; (10)Creepage: ≥ 7.0 mm; (11)Clearance: ≥ 7.0 mm; (12)Insulation thickness between emitter and detector comparative tracking index per DIN IEC 112/VDEO 303, part 1: ≥ 175; (13)Storage temperature range Tstg: - 55 to + 150 ℃; (14)Ambient temperature range Tamb: - 55 to + 100 ℃; (15)Junction temperature Tj: 100 ℃; (16)Soldering temperature, Tsld: 260 ℃.
Features
SFH615AGB-X009T features: (1)Low CTR Degradation; (2)Good CTR Linearity Depending on Forward Current; (3)Isolation Test Voltage, 5300 VRMS; (4)High Collector-emitter Voltage, VCEO = 70 V; (5)Low Saturation Voltage; (6)Fast Switching Times; (7)Temperature Stable; (8)Low Coupling Capacitance; (9)End-Stackable, .100 " (2.54 mm) Spacing; (10)High Common-mode Interference Immunity (Unconnected Base).

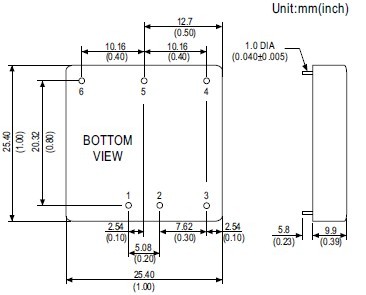

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SFH615AGB-X009T |
Vishay Semiconductors |
Transistor Output Optocouplers Phototransistor Out Single CTR>100-600% |
Data Sheet |
|
|
||||||||||||
