Product Summary

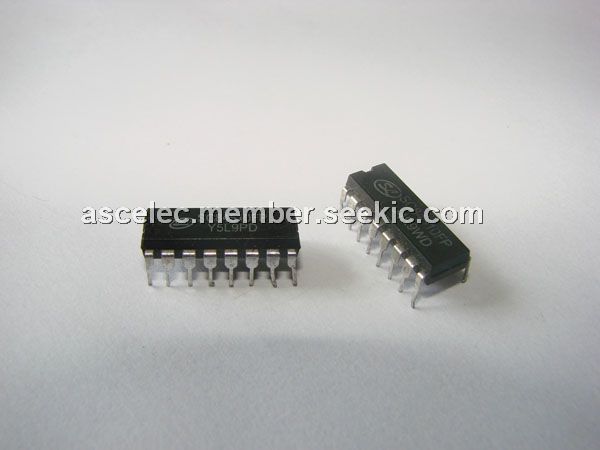

The SC84510FP is a Scrolling Mouse Controller, specially designed to control PS/2 mouse device. This single chip can interface three keyswitches four photo-couples plus x-axis direct to 8042 controller. The SC84510FP can receive command and echo status or data format which are compatible with IBM PS/2 mode mouse. Key debouncing circuit is provided to prevent false entry and improve the accuracy.
Parametrics
SC84510FP absolute maximum ratings: (1)Temperature Under Bias, TOPR: 0 to 70℃; (2)Storage Temperature range, TSTR: -65 to +150℃; (3)Input Voltage, VIN: -0.3 to +6.0 V; (4)Output Voltage, VO: -0.3 to +6.0 V.
Features
SC84510FP features: (1)Using 50k ±5% resistor for RC oscillation; (2)Compatible with legacy PS/2 mouse; (3)Compatible with Microsoft scrolling mouse; (4)Built-in noise immunity circuit; (5)Built-in current comparator for photo-couples input; (6)Built-in three steps dynamic input impedance; (7)Three key-switches and four photo-couples inputs; (8)Both key-press and key-release debounce interval 12 ms; (9)The sampling rate of motion detector is about 65KHz.
Diagrams
 |
