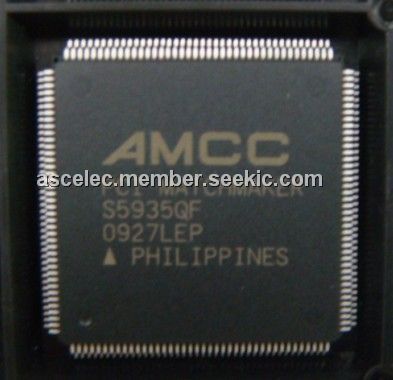

Product Summary
The S5935QF is a powerful and flexible PCI controller supporting several levels of interface sophistication. At the lowest level, it can serve simply as a PCI bus Target with modest transfer requirements. For high-performance applications, the S5935QF can become a Bus Master to attain the PCI Local bus peak transfer capability of 132 MBytes/sec. The S5935QF PCI controller also maintains drop-in compatibility for upgrading many existent S5935QF designs requiring migration into new motherboard architectures, PCI BIOSs and software operating systems. It is an off-the-shelf, low-cost, standard product, which is PCI 2.1 compliant. And, since AMCC is a member of the PCI Special Interest Group, the S5935QF has been tested on various manufacturer s PCI motherboards, chip sets, PCI BIOSs and operating systems.
Parametrics
Absolute maximum ratings: (1)Storage Temperature: –55 to 125 °C; (2)Supply Voltage (V CC): –0.3 to 7.0 Volts; (3)Input Pin Voltage: –0.5 to V CC + 5.0 Volts; (4)Power Dissipation: 1.05 Watts @33 MHz max; (5)VCC, Supply Voltage: 4.75 to 5.25v; (6)Vih, input high voltage:2.0v min; (7)Vil, input low voltage:-0.5 to 0.8v; (8)Cclk, CLK Pin Capacitance: 5 to 12pF.
Features
Features:(1)PCI 2.1 Compliant Master/Slave Device; (2)Full 132 Mbytes/sec Transfer Rate; (3)Supports new Intel 440BX/GX Chipsets; (4)Supports new WinNT Service Pack 2 & 3; (5)PCI Bus Operation DC to 33 MHz; (6)8/16/32 Bit Add-On User Bus; (7)Four Definable Pass-Thru Data Channels; (8)Two 32 Byte Internal FIFOs w/DMA; (9)Synchronous Add-On Bus Operation; (10)Mail Box Registers w/Byte Level Status; (11)Direct Mail Box Data Strobe/Interrupts; (12)Direct PCI & Add-On Interrupt Pins; (13)Optional Non-Volatile Memory Boot Loading; (14)Optional Expansion BIOS/POST Code.

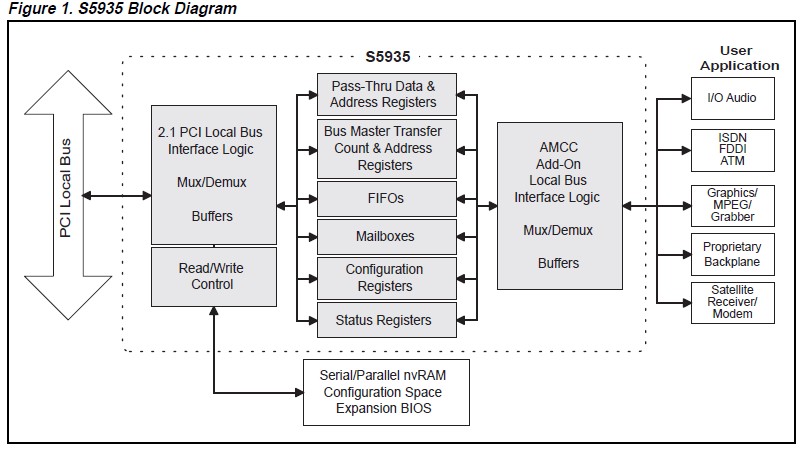

Diagrams
