Product Summary

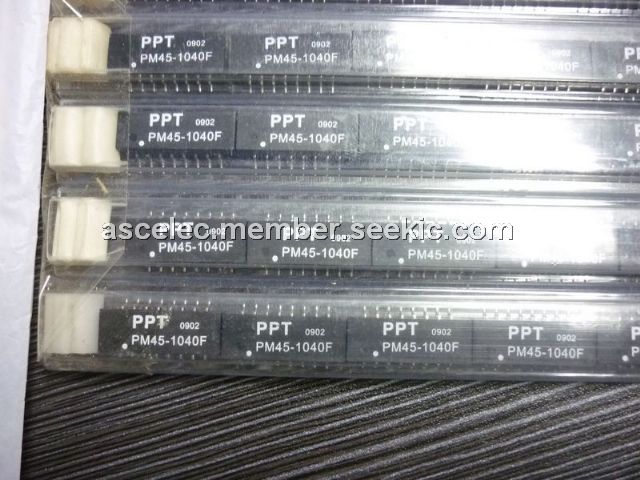

The PM45-1040F is a 10/100Base-T Single port Magnetic.
Parametrics
PM45-1040F absolute maximum ratings: (1)Isolation Voltage: 1,500Vrms; (2)OCL(100KHz,0.1Vrms,8mA): 350 H Min; (3)Leakage Inductance(1MHz): 0.4 H Max; (4)Cw/w: 20pF Typ; (5)Rise Time: 2.5nS Typ; (6)Insertion Loss(0.1 100MHz): -1.0dB Max; (7)Cross Talk(0.1 100MHz): -38dB Min; (8)DCR: 1.0 Max; (9)CMRR(0.1 100MHz): -40dB Min.
Features
PM45-1040F features: (1)Meet The Isolation, Insertion Loss and Return Loss Requirements of IEEE802.3; (2)Isolation Modules are Available for Most LAN IC Manufacture Products.
Diagrams
 |
