Product Summary
The PH1090-350L is an Avionics Pulsed Power Transistor.
Parametrics
PH1090-350L absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 80 V; (2)Emitter-Base Voltage VEBO: 3.0 V; (3)Collector Current (Peak) IC: 17 A; (4)Power Dissipation @ +25℃ PTOT: 875 W; (5)Storage Temperature TSTG: -65 to +200 ℃; (6)Junction Temperature TJ: 200 ℃.
Features
PH1090-350L features: (1)NPN silicon microwave power transistors; (2)Common base configuration; (3)Broadband Class C operation; (4)High efficiency inter-digitized geometry; (5)Diffused emitter ballasting resistors; (6)Gold metallization system; (7)Internal input and output impedance matching; (8)Hermetic metal/ceramic package; (9)RoHS Compliant.

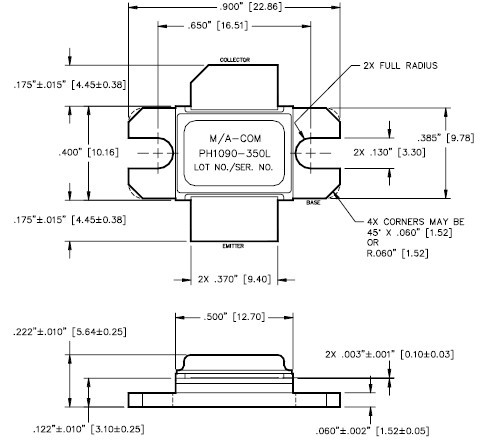

Diagrams
