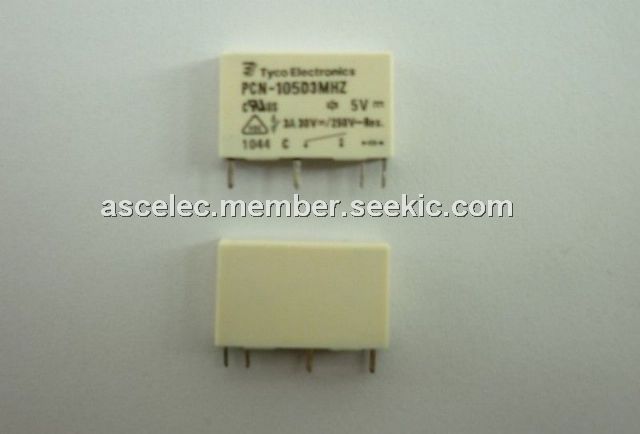

The PCN-105D3MHZ is a Slim PCB Relay PCN.
Parametrics
PCN-105D3MHZ absolute maximum ratings: (1)Contact configuration: 1NO; (2)Contact set: bifurcated contact; (3)Type of interruption: micro disconnection; (4)Rated current: 3 A; (5)Rated voltage / max.switching voltage AC: 240/277 VAC; (6)Limiting continuous current: 3 A; (7)Maximum breaking capacity AC: 750 VA; (8)Limiting making capacity, max 4 s, duty factor 10%: 5 A; (9)Contact material: AgNi90/10; (10)Minimum contact load: 5V / 1mA; (11)Mechanical endurance: 20x106 cycles; (12)Rated frequency of operation with / without load: 10 / 1200 min-1.
Features
PCN-105D3MHZ features: (1)1 pole 3 A, 1 NO contact; (2)Only 5 mm wide; (3)3 A switching current; (4)Load range 1 mA up to 3 A; (5)Sensitive coil 120 mW; (6)Allows high function-/packing density; (7)Cadmium-free contacts; (8)Z type with reinforced insulation; (9)RoHS compliant (Directive 2002/95/EC) as per product date code 0424.

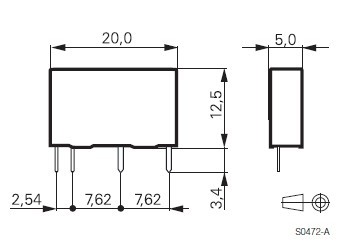

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PCN-105D3MHZ |
TE Connectivity / OEG |
General Purpose / Industrial Relays 5VDC SPST-NO 3A |
Data Sheet |
|
|
||||||||||||
 |
PCN-105D3MHZ,000 |
TE Connectivity / OEG |
General Purpose / Industrial Relays SPST-NO 3A 6VDC SLIMLINE PCB RELAY |
Data Sheet |
Negotiable |
|
||||||||||||
