Product Summary

The PC3H7CJ0000F is a Mini-falt Package, General Purpose Half Pitch Photocoupler.

Parametrics

PC3H7CJ0000F absolute maximum ratings: (1)Forward current: 50mA; (2)Peak forward current: 1A; (3)Reverse voltage: 6V; (4)Power dissipation: 70mW; (5)Emitter-collector voltage: 6V; (6)Collector current: 50mA; (7)Collector power dissipation: 150mW; (8)Total power dissipation: 170mW; (9)Operating temperature: -30 to 100℃; (10)Storage temperature: -40 to 125℃.

Features

PC3H7CJ0000F features: (1)Mini-flat package; (2)Half pitch type (lead pitch : 1.27mm); (3)Isolation voltage (Viso : 2 500Vrms); (4)Applicable to infrared ray reflow (230℃, for MAX. 30s); (5)High reliability; (6)Taping package.

Diagrams

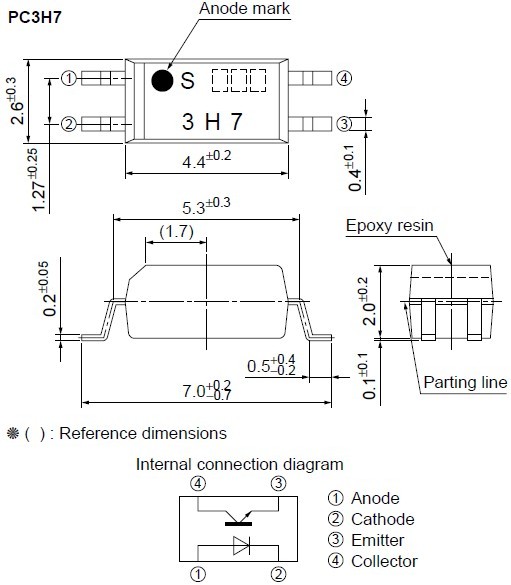

PC3H7CJ0000F Outline Dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PC3H7CJ0000F
PC3H7CJ0000F
Sharp Microelectronics
Transistor Output Optocouplers 80-160% CTR ranked PC3H7J00000F
