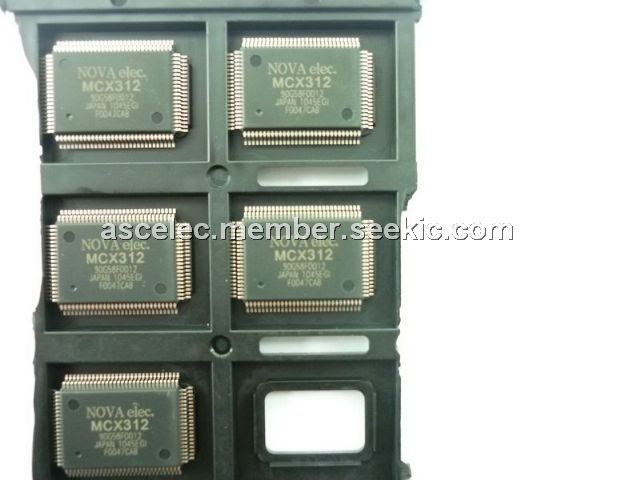

Product Summary

MCX312 is a 2-axis motion control IC which can control 2 axes of either stepper motor or pulse type servo drivers for position, speed, and interpolation controls. All of the MCX312 function are controlled by specific registers. There are command registers, data registers, status registers and mode registers.

Parametrics

MCX312 absolute maximum ratings: (1)Power Voltage VBDDB: - 0.3 ~ +7.0 V; (2)Input voltage VBINB: -0.3 ~ VBDDB+0.3 V; (3)Input Current IBINB: ±10 mA; (4)Temperature TBSTGB: -40 ~ +125 ℃.

Features

MCX312 features: (1)High level input voltage: 2.2 V; (2)Low level input voltage: 0.8 V; (3)High level input current: -10 to 10 μA; (4)Low level input current: -10 to 10 μA; (5)High level output voltage: 2.4 V; (6)Low level output voltage: 0.4 V; (7)Output leakage; (8)current: -10 to 10 μA; (9)Smith hysteresis voltage: 0.3 V; (10)Consuming current: 28 to 50 mA.

Diagrams

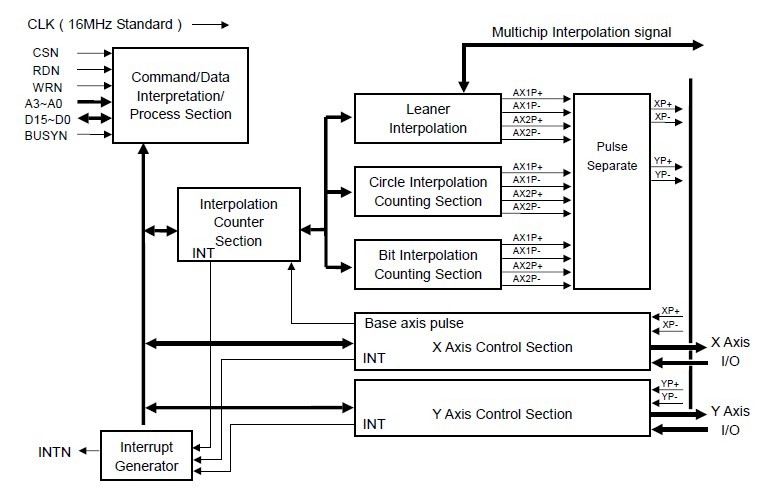

MCX312 block diagram

MCX380D5R
MCX380D5R
