Product Summary

The MCR716T4G is a reverse blocking thyristor. It is designed for high volume, low cost, industrial and consumer applications such as motor control, process control, temperature, light and speed control.

Parametrics

MCR716T4G absolute maximum ratings: (1)Peak Repetitive Off-State Voltage, VDRM, VRRM: 400V; (2)On-State RMS Current (180° Conduction Angles; TC = 90℃), IT(RMS): 4.0A; (3)Average On-State Current (180° Conduction Angles; TC = 90℃), IT(AV): 2.6A; (4)Peak Non-Repetitive Surge Current, ITSM: 25A; (5)Circuit Fusing Consideration (t = 8.3 msec), I2t: 2.6A2sec; (6)Forward Peak Gate Power, PGM: 0.5W; (7)Forward Average Gate Power, PG(AV): 0.1W; (8)Forward Peak Gate Current, IGM: 0.2A; (9)Operating Junction Temperature Range, TJ: -40 to +110℃; (10)Storage Temperature Range, Tstg: -40 to +150℃.

Features

MCR716T4G features: (1)Small Size; (2)Passivated Die for Reliability and Uniformity; (3)Low Level Triggering and Holding Characteristics; (4)Surface Mount Lead Form Case 369C; (5)Epoxy Meets UL 94 V@0 at 0.125 in; (6)ESD Ratings: Human Body Model, 3B>8000 V Machine Model, C>400 V; (7)Pb-Free Packages are Available.

Diagrams

MCR716T4G block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

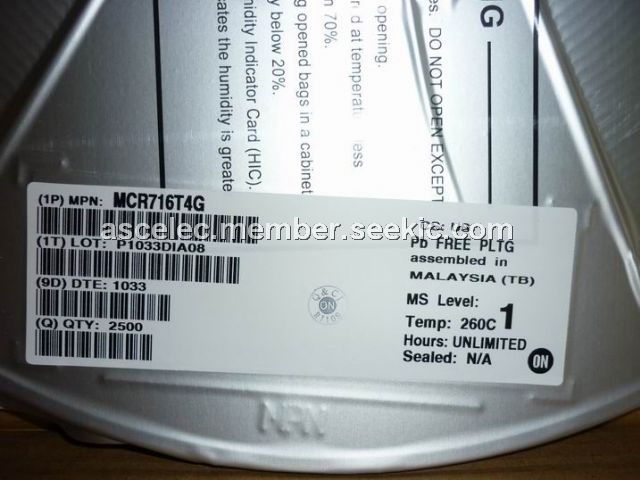

MCR716T4G
MCR716T4G

ON Semiconductor

SCRs 400V 4A

Data Sheet

0-1: $0.55
1-25: $0.43
25-100: $0.37
100-500: $0.27
