Product Summary

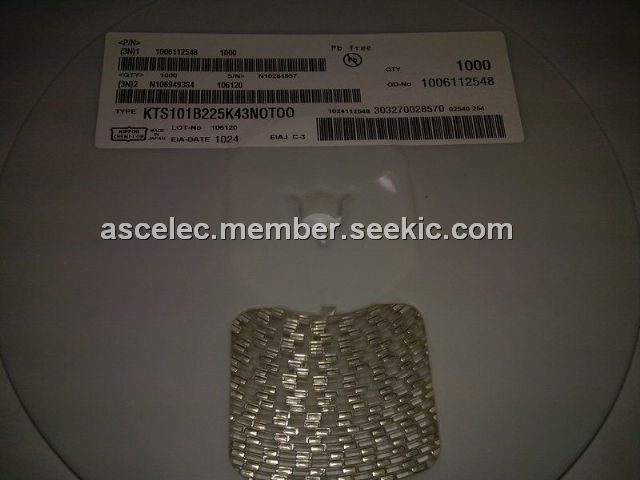

The KTS101B225K43N0T00 is a multilayer ceramic chip capacitor.

Parametrics

KTS101B225K43N0T00 absolute maximum ratings: (1)Category Temperature Range -55 to +125C; (2)Rated Voltage Range 25, 50, 100, 250Vdc; (3)Rated Capacitance Range 0.033 to 33MF; (4)Rated Capacitance Tolerance K (P10%) , M (P20%); (5)Temperature Characteristics: X5R, X7R; (6)Rated Ripple Current: See No.5 on the following table.

Features

KTS101B225K43N0T00 features: (1)Large capacitance by small size; (2)Excellent noise absorption; (3)High permissible ripple current capability; (4)Pb-free design; (5)Tin plate terminations.

Diagrams

KTS101B225K43N0T00 CONSTRUCTION

KTS101B155K32N0T00
KTS101B155K32N0T00


CAP CER 1.5UF 100V 10% X7R 1210

Data Sheet

0-1600: $0.32
KTS101B225K32N0T00
KTS101B225K32N0T00


CAP CER 2.2UF 100V 10% X7R 1210

Data Sheet

0-1600: $0.36
KTS101B335K43N0T00
KTS101B335K43N0T00


CAP CER 3.3UF 100V 10% X7R 1812

Data Sheet

0-800: $0.43
KTS101B475K43N0T00
KTS101B475K43N0T00


CAP CER 4.7UF 100V 10% X7R 1812

Data Sheet

0-800: $0.45
KTS101B684K31N0T00
KTS101B684K31N0T00


CAP CER 0.68UF 100V 10% X7R 1206

Data Sheet

0-3000: $0.29
KTS101B685K55F0T00
KTS101B685K55F0T00


CAP CER 6.8UF 100V 10% X7R 2220

Data Sheet

0-800: $0.50
