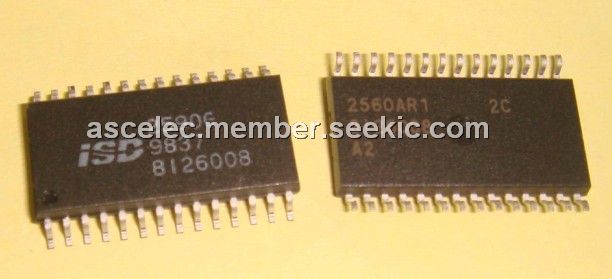

Product Summary

The ISD2590G is a Single-Chip Voice Record/Playback Device for 60- to 120-second messaging applications. The ISD2590G includes an on-chip oscillator, microphone preamplifier, automatic gain control, antialiasing filter, smoothing filter, speaker amplifier, and high density multi-level storage array. In addition, the ISD2590G is microcontroller compatible, allowing complex messaging and addressing to be achieved.

Parametrics

ISD2590G absolute maximum ratings: (1)Junction temperature: 150℃; (2)Storage temperature range: -65 to +150℃; (3)Voltage applied to any pin: (VSS -0.3V) to (VCC +0.3V); (4)Voltage applied to any pin(Input current limited to ±20mA): (VSS -1.0V) to (VCC +1.0V); (5)Lead temperature: 300℃; (6)VCC-VSS: -0.3V to +7.0V.

Features

ISD2590G features: (1)Easy-to-use single-ship voice record/playback solution; (2)High-quality, natural voice/audio reproduction; (3)Manual switch or microcontroller compatible playback can be edge- or level-activated; (4)Single-chip durations of 60,75, 90, and 120 seconds; (5)Directly cascadable for longer durations; (6)Automatic power-down(push-button mode)- standby current 1μA(typical); (7)Zero-power message storage- Eliminates battery backup circuits; (8)Fully addressable to handle multiple message; (9)100-year message retention(typical).

Diagrams

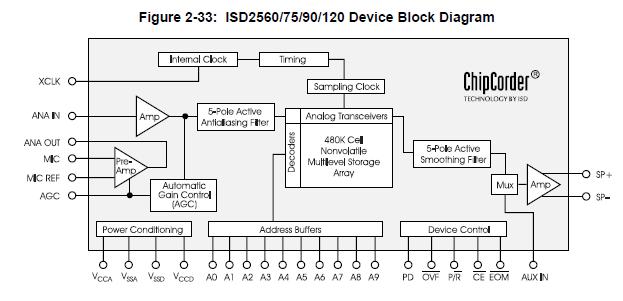

ISD2590G block diagram
