Product Summary
The IS471FE is an OPIC Light Detector with Built-in Signal Processing Circuit for Light Modulation System. The applications of the IS471FE include Optoelectronic switches, Copiers, printers, Facsimiles.
Parametrics
IS471FE absolute maximum ratings: (1)Supply voltage, VCC: -0.5 to 16 V; (2)Output voltage, VO: 16 V; (3)Output current, IO: 50 mA; (4)Output voltage, VGL: 16 V; (5)Power dissipation, P: 250 mW; (6)Operating temperature, Topr: -25 to + 60℃; (7)Storage temperature, Tstg: -40 to +100℃; (8)Soldering temperature, Tsol: 260℃.
Features
IS471FE features: (1)Impervious to external disturbing lights due to light modulation system; (2)Built-in pulse driver circuit and sync. detector circuit on the emitter side; (3)A wide range of operating supply voltage( VCC: 4.5 to 16V).

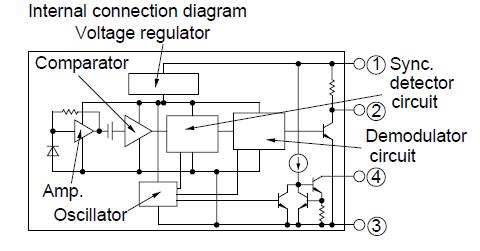

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IS471FE |
Sharp Microelectronics |
Infrared Receivers OPIC Light Detector |
Data Sheet |
|
|
||||||
