Product Summary

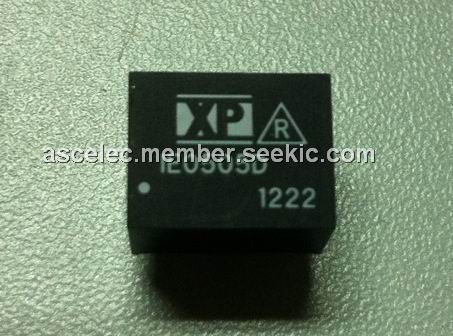

The IE0505D is a DC/DC converter.


IE0505D absolute maximum ratings: (1)Input Voltage: ±10%; (2)Input Reflected Noise: 100mV pk-pk max; (3)Input Output Isolation: 1000 VDC/ 3000 VDC min; (4)Temperature Coefficient: 0.03%/°C max; (5)Operating Temperature Range: -40 °C to +85 °C; (6)Storage Temperature Range: -55 °C to +125 °C.


IE0505D features: (1)0.12 in Board Space; (2)80% Efficiency; (3)22 Watts per in3; (4)3.3, 5, 12, 24 and 48 VDC Inputs; (5)1000/3000 VDC Isolation; (6)Industry Standards Pinouts.


IE0505D pin connection
