Product Summary
The HHM1517 is a multilayer balun.
Parametrics
HHM1517 absolute maximum ratings: (1)Unbalanced Impedance: 50 ohm; (2)Balanced Impedance: 50 ohm; (3)Frequency Range: 2400-2500MHz; (4)Storage Temperature: -40℃ to +85℃; (5)Operating Temperature: -40℃ to +85℃.
Features
HHM1517 featrues: (1)Unbalanced Impedance 50 ohm; (2)Balanced Impedance 50 ohm; (3)Frequency Range 2400-2500MHz; (4)Unbalanced Port Return Loss 10 dB Min; (5)Phase Imbalance at Balanced Port 180 ± 10 deg; (6)Amplitude Imbalance at Balanced Port 0 ± 2.0 dB; (7)Insertion Loss 1.2dB Max.

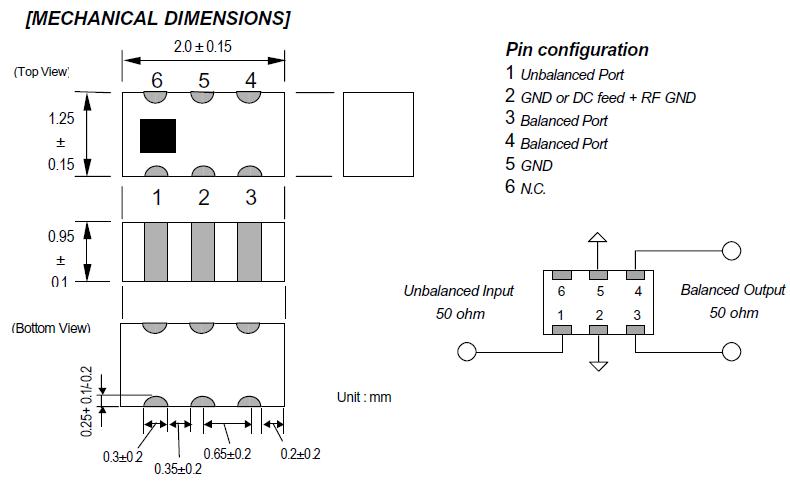

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HHM1517 |
|
XFRMR BALUN RF 2.4GHZ SMD |
Data Sheet |
|
|
||||||||||||
 |
HHM1517A2 |
TDK |
Signal Conditioning XFMR Balun RF 2.4GHz WLAN & Bluetooth |
Data Sheet |
|
|
||||||||||||
