Product Summary

The G6HK-2-12VDC is an Ultra-compact, Ultra-sensitive DPDT Relay.

Parametrics

G6HK-2-12VDC absolute maximum ratings: (1)Load: Resistive load (cosφ = 1); (2)Rated load: 0.5 A at 125 VAC; 1 A at 30 VDC; (3)Contact material: Ag (Au-Alloy); (4)Rated carry current: 1 A; (5)Max. switching voltage: 125 VAC, 110 VDC; (6)Max. switching current: 1 A; (7)Max. switching power: 62.5 VA, 33 W; (8)Failure rate (reference value): 10 μA at 10 mVDC.

Features

G6HK-2-12VDC features: (1)Compact size and low 5-mm profile; (2)Low power consumption (140 mW for single-side stable, 100 to 300 mW for latching type) and high sensitivity; (3)Low thermoelectromotive force; (4)Low magnetic interference enables high-density mounting; (5)Single- and double-winding latching types also available.

Diagrams

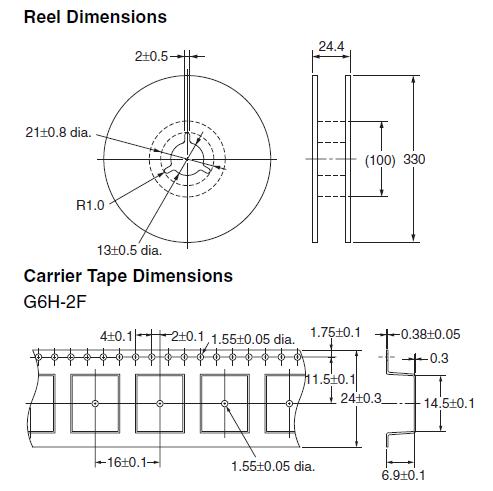

G6HK-2-12VDC block diagram

G6HK-2 DC4.5
G6HK-2 DC4.5
