Product Summary

The EN80C188EB20 is a CHMOS High-Integration microprocessor. The EN80C188EB20 includes a STATIC CPU core, an enhanced Chip Select decode unit, two independent Serial Channels, I/O ports, and the capability of Idle or Powerdown low power modes.

Parametrics

EN80C188EB20 absolute maximum ratings: (1)Storage Temperature: -65 to 150℃; (2)Case Temp under Bias: -65 to 120℃; (3)Supply Voltage with Respect to VSS: -0.5V to 6.5V; (4)Voltage on other Pins with Respect to VSS: -0.5V to VCC + 0.5V.

Features

EN80C188EB20 features: (1)Integrated Feature Set; (2)Direct Addressing Capability to 1 Mbyte Memory and 64 Kbyte I/O; (3)Speed Versions Available (5V): 20 MHz; (4)Available in Extended Temperature Range (-40 to + 85℃); (5)Low-Power Operating Modes: Powerdown Mode Freezes All Internal Clocks; (6)Supports 80C187 Numeric Coprocessor Interface (80C186EB PLCC Only); (7)Available In: 80-Pin Quad Flat Pack (QFP), 84-Pin Plastic Leaded Chip Carrier (PLCC).

Diagrams

EN80C188EB20 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

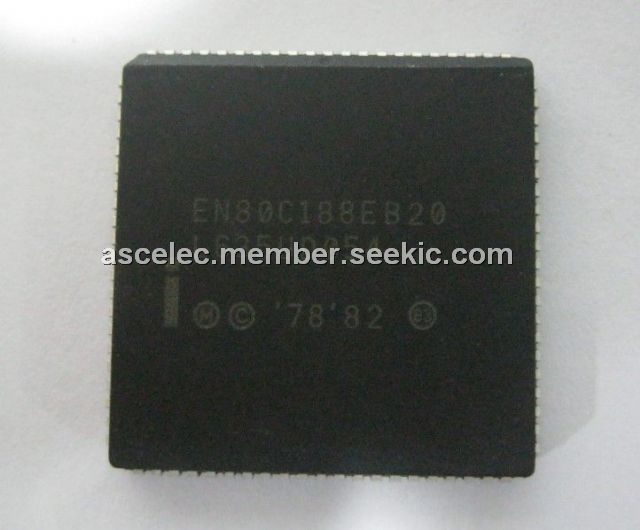

EN80C188EB20
EN80C188EB20


IC MPU 16BIT 5V 20MHZ EXT 84PLCC

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EN80960SA16512
EN80960SA16512


IC MPU I960SA 16MHZ 84-PLCC

Data Sheet

Negotiable
EN80960SB16512
EN80960SB16512


IC MPU I960SB 16MHZ 84-PLCC

Data Sheet

Negotiable
EN80C186EA13
EN80C186EA13


IC MPU 16-BIT 5V 13MHZ 68-PLCC

Data Sheet

Negotiable
EN80C186EA20
EN80C186EA20


IC MPU 16-BIT 5V 20MHZ 68-PLCC

Data Sheet

Negotiable
EN80C186EB13
EN80C186EB13


IC MPU 16-BIT 5V 13MHZ 84-PLCC

Data Sheet

Negotiable
EN80C186EB20
EN80C186EB20


IC MPU 16BIT 5V 20MHZ 84PLCC

Data Sheet

Negotiable
