Product Summary

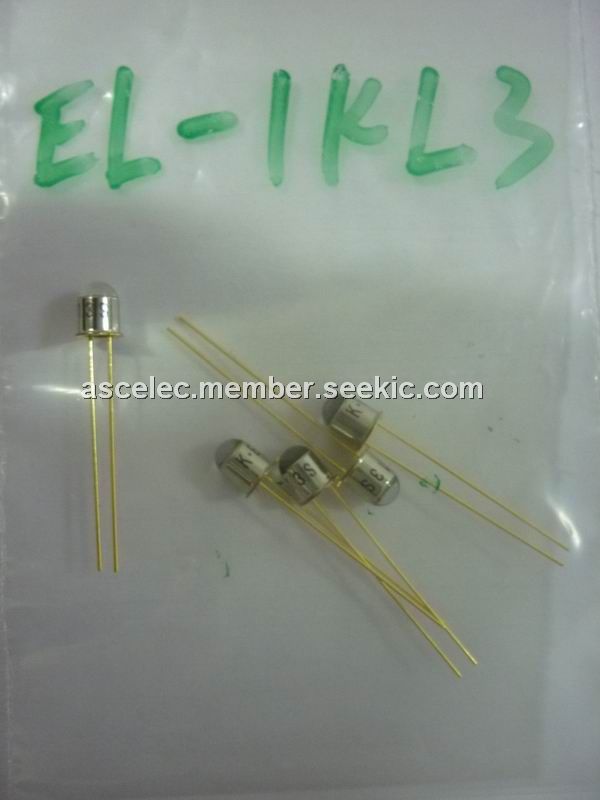

The EL-1KL3 is a high-power GaAs IRED mounted in durable, hermetially sealed TO-18 metal can packages, providing years of reliable performance even under demanding conditions such as use outdoors. The applications of the EL-1KL3 include optical switches.

Parametrics

EL-1KL3 absolute maximum ratings: (1)Reverse voltage, VR: 5V; (2)Forward current, IF: 100mA; (3)Power dissipation. PO: 170mW; (4)Pulse forward current, IFP: 1A; (5)Operating temperature, TOPR: -30 to +100℃; (6)Storage temerature, TSTG: -40 to +110℃; (7)Soldering temperature, TSOL: 260℃.

Features

EL-1KL3 features: (1)TO-18 can type with glass lense; (2)High reliability; (3)High output power.

Diagrams

EL-1KL3 block diagram
