Product Summary

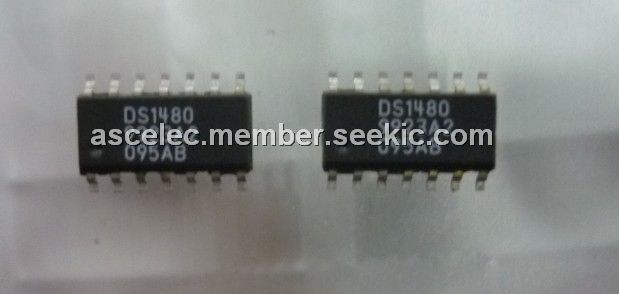

The DS1480 is a quad line receiver designed to interface data terminal equipment with data communications equipment. The device is constructed on a single monolithic silicon chip. The device satisfy the specifications of EIA Standard RS-232D. The DS1480 meets and exceed the specifications of the device and is pin-for-pin replacements.

Parametrics

DS1480 absolute maximum ratings: (1)Power Supply Voltage: 10V; (2)Input Voltage Range: ±30V; (3)Output Load Current: 20 mA; (4)Power Dissipation: 1W; (5)Operating Temperature Range: 0℃ to +75℃; (6)Storage Temperature Range: -65℃ to +150℃; (7)Maximum Power Dissipation at 25℃, Molded DIP Package: 1207 mW; SO Package: 1042 mW; (8)Lead Temperature (Soldering, 4 sec.): 260℃.

Features

DS1480 features: (1)Four separate receivers per package; (2)Programmable threshold; (3)Built-in input threshold hysteresis; (4)“Fail safe” operating mode: high output for open inputs; (5)Inputs withstand ±30V.

Diagrams

DS1480 block diagram
