Product Summary

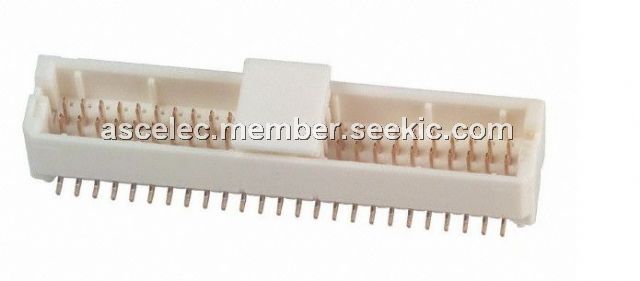

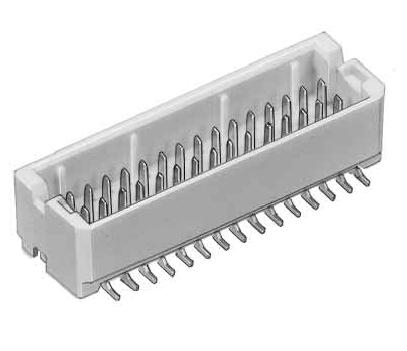

The DF20F-50DP-1V(56) is a 1 mm Pitch Double Rows Low Profile Board-to-Cable Connector.

Parametrics

DF20F-50DP-1V(56) absolute maximum ratings: (1)Rated current: 1A; (2)Rated voltage: 100V AC; (3)Operating temperature range: -35℃ to 85℃; (4)Operating humidity range: -20% to 80%; (5)Storage temperature range: -10℃ to 60℃; (6)Storage humidity range: -40% to 70%.

Features

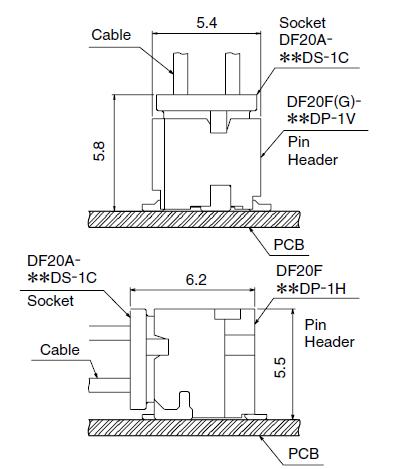

DF20F-50DP-1V(56) features: (1)Contact Pitch, 1 mm contact pitch allows reliable solder and cable termination; (2)Low profile, Total mating height above the board is 5.8 mm for the straight type and 5.5 mm for the right angle type; (3)Reliable electrical connection wipe, Effective electrical connection is assured with a 1mm wipe of mating contacts; (4)Narrower external width and length, Redesigned metal fittings decreased the overall length of the board-mount receptacle and permit end-to-end mounting of several connectors; (5)Automatic equipment board placement, Straight type pin headers are supplied with a 5.4 mm X 4.6mm flat platform to allow vacuum pick-up and placement on the board; (6)Product variations, Available with 10, 20, 30, 40, and 50 contacts; Pin headers are available in two types: with or without board positioning bosses; Depending on specific application pin headers can be ordered in straight or right angle types.
