Product Summary

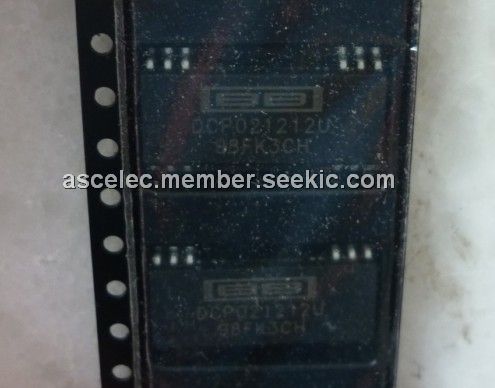

The DCP021212U is a 2W, isolated, unregulated DC/DC converter. Requiring a minimum of external components and including on-chip device protection, the DCP021212U provides extra features such as output disable and synchronization of switching frequencies. It is used in point-of-Use power conversion, ground loop elimination, data acquisition, industrial control and instrumentation, test Equipment.
Parametrics
DCP021212U absolute maximum ratings: (1) Input Voltage: 5V input models: 7 V; 12V input models: 15 V; 5V input models: 18 V; 24V input models: 29 V; (2) Storage temperature range: –60 to +125℃; (3) Power: 2 W at 100% full load; (4) Ripple: 20mVPP at Output capacitor = 1mF, 50% load.
Features
DCP021212U features: (1) Up To 89% Efficiency; (2) Thermal Protection; (3) Device-to-Device Synchronization; (4)SO-28 Power Density of 106W/in3 (6.5W/cm3 ); (5)EN55022 Class B EMC Performance; (6)UL1950 Recognized Component; (7)JEDEC 14-Pin and SO-28 Packages.

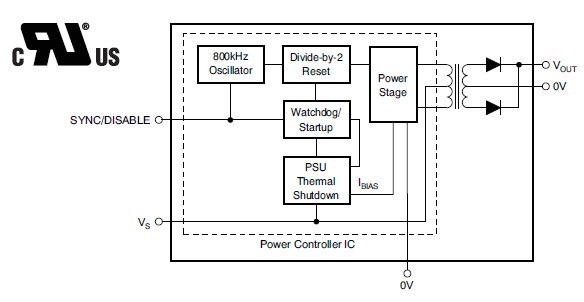

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DCP021212U |
Texas Instruments |
DC/DC Converters Mini 2W Iso Unreg DC/DC Converter |
Data Sheet |
|
|
||||||||||||
|
DCP021212U/1K |
Texas Instruments |
DC/DC Converters Mini 2W Iso Unreg DC/DC Converter |
Data Sheet |
|
|
||||||||||||
