CS8361YDPSR7G

precision Micropower, dual voltage regulator, TO-263-7, -16 to 26 V, 100 mA, RESET Option, Low Quiescent Current

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.00

PartNumber:: CS8361YDPSR7G

Brand:: ON Semiconductor - ON | Pack: TO | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. shanna wei's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-08

From Other Seller

Part Number:CS8361YDPSR7G
US $1.00 - 1.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

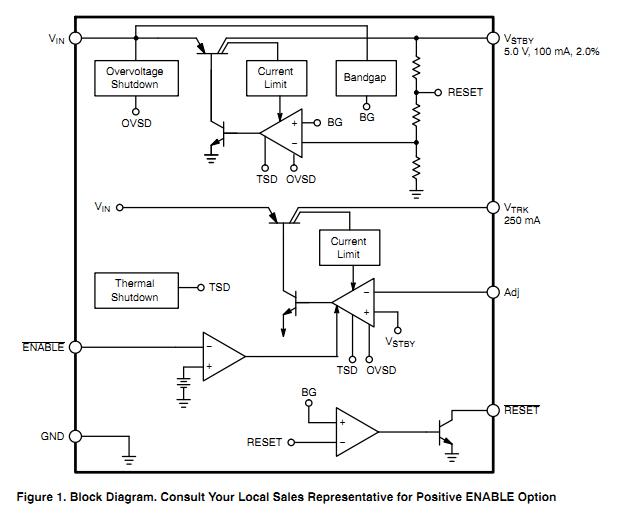

The CS8361YDPSR7G is a precision Micropower dual voltage regulator with ENABLE and RESET. The 5.0 V standby output is accurate within ±2% while supplying loads of 100 mA and has a typical dropout voltage of 400 mV. The CS8361YDPSR7G active RESET output monitors the 5.0 V standby output and is low during power-up and regulator dropout conditions. The CS8361YDPSR7G RESET circuit includes hysteresis and is guaranteed to operate correctly with 1.0 V on the standby output. The second output tracks the 5.0 V standby output through an external adjust lead, and can supply loads of 250 mA with a typical dropout voltage of 400 mV. The robustness and low quiescent current of the CS8361YDPSR7G makes it not only well suited for automotive microprocessor applications, but for any battery powered microprocessor applications.

Parametrics

CS8361YDPSR7G absolute maximum ratings: (1)Supply Voltage, VIN: -16 to 26 V; (2)Positive Transient Input Voltage, tr > 1.0 ms: 60 V; (3)Negative Transient Input Voltage, T < 100 ms, 1.0 % Duty Cycle: -50 V; (4)Input Voltage Range (ENABLE, RESET): -0.3 to 10 V; (5)Tracking Regulator (VTRK, Adj): 20 V; (6)Standby Regulator (VSTBY): 10 V; (7)Junction Temperature: -40 to +150℃; (8)Storage Temperature Range: -55 to +150℃; (9)ESD Susceptibility (Human Body Model): 2.0 kV; (10)Lead Temperature Soldering Wave Solder (through hole styles only): 260℃.

Features

CS8361YDPSR7G features: (1)2 Regulated Outputs: Standby Output 5.0 V ± 2%; 100 mA; Tracking Output 5.0 V; 250 mA; (2)Low Dropout Voltage (0.4 V at Rated Current); (3)RESET Option; (4)ENABLE Option; (5)Low Quiescent Current; (6)Protection Features: Independent Thermal Shutdown; Short Circuit; 60 V Load Dump; Reverse Battery; (7)Internally Fused Leads in SO-16L Package; (8)These are Pb-Free Devices.
