Product Summary
The C8051F410-GQR is a fully integrated, low power, mixed-signal system-on-a-chip MCU. With on-chip Power-On Reset, VDD monitor, Watchdog Timer, and clock oscillator, the C8051F410-GQR is truly standalone system-on-a-chip solutions. The Flash memory can be reprogrammed even in-circuit, providing non-volatile data storage, and also allowing field upgrades of the 8051 firmware. User software has complete control of all peripherals, and may individually shut down any or all peripherals for power savings.
Parametrics
C8051F410-GQR absolute maximum ratings: (1)Ambient temperature under bias:–55 to 125℃; (2)Storage Temperature:–65 to 150℃; (3)Voltage on VREGIN with respect to GND: –0.3 to 5.5 V; (4)Voltage on VDD with respect to GND:–0.3 to 3.0 V; (5)Voltage on VRTC-BACKUP with respect to GND: –0.3 to 5.5 V; (6)Voltage on XTAL1 with respect to GND:–0.3 to VDD+ 0.3 V; (7)Voltage on XTAL3 with respect to GND:–0.3 to 5.5 V; (8)Voltage on any Port I/O Pin (except Port 0 pins) or RST with respect to GND:–0.3 to VIO + 0.3 V; (9)Voltage on any Port 0 Pin with respect to GND: 0.3 to 5.5 V; (10)Maximum output current sunk by any Port pin: 100 mA; (11)Maximum output current sourced by any Port pin: 100 mA; (12)Maximum Total current through VDD, VIO,VRTC-BACKUP, VREGIN, and GND: 500mA.
Features
C8051F410-GQR features: (1)±1 LSB INL; no missing codes; (2)Programmable throughput up to 200 ksps; (3)Up to 24 external inputs; (4)Data dependent windowed interrupt generator; (5)Built-in temperature sensor (±3℃); (6)On-chip debug circuitry facilitates full-speed, non-intrusive in-system debug (No emulator required); (7)Provides breakpoints, single stepping; (8)Inspect/modify memory and registers; (9)Complete development kit; (10)2304 bytes internal data RAM (256 + 2048); (11)32/16 kB Flash; In-system programmable in 512 byte sectors; (12)64 bytes battery-backed RAM (smaRTClock).

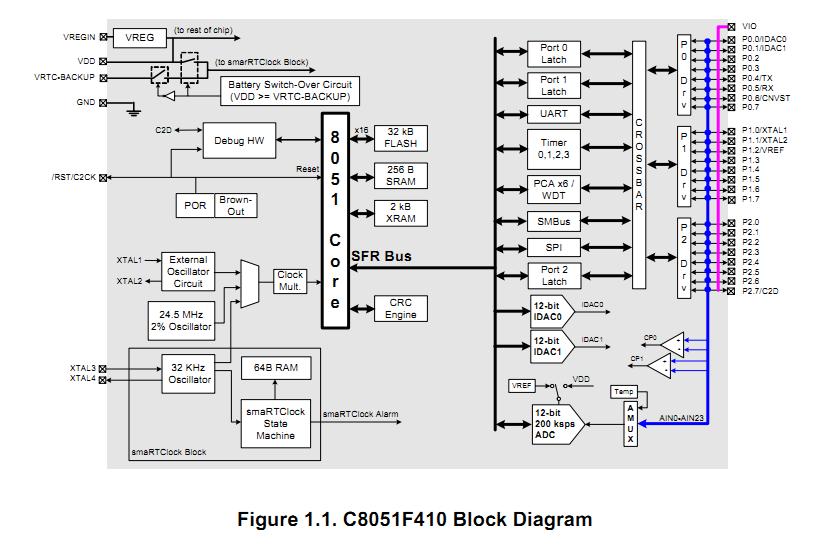

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
C8051F410-GQR |
Silicon Labs |
8-bit Microcontrollers (MCU) 50 MIPS 32KB 12ADC 32 PIN MCU RTCLOCK |
Data Sheet |
|
|
|||||||||||||
