Product Summary

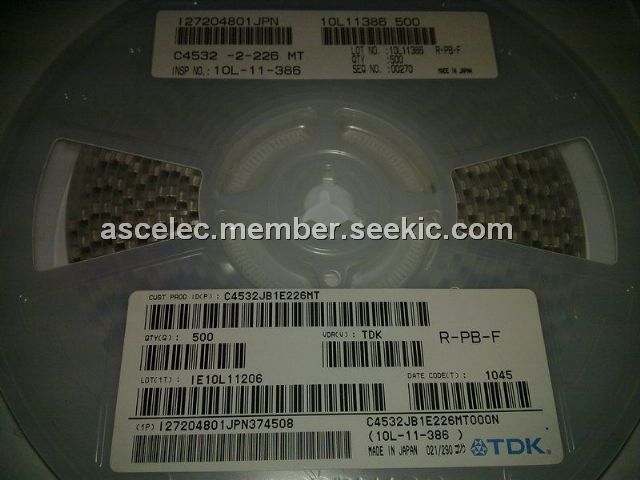

The C4532JB1E226M is a General Multilayer Ceramic Chip Capacitor.

Parametrics

C4532JB1E226M absolute maximum ratings: (1)Capacitance Value 22μF; (2)Case Style Ceramic Chip; (3)Construction Flat; (4)Dielectric JB; (5)Maximum Operating Temperature 85℃; (6)Minimum Operating Temperature -25℃; (7)Mounting Surface Mount; (8)Package/Case 1812; (9)Product Depth 3.2mm; (10)Product Height 2.5mm; (11)Product Length 4.5mm; (12)Tolerance 20%; (13)Voltage 25V dc.

Features

C4532JB1E226M features: (1)High capacitance has been achieved through precision technologies that enable the use of multiple thinner ceramic dielectric layers; (2)A monolithic structure ensures superior mechanical strength and reliability; (3)High-accuracy automatic mounting is facilitated through the maintenance of very precise dimensional tolerances; (4)Composed of only ceramics and metals, these capacitors provide extremely dependable performance, exhibiting virtually no degradation even when subjected to temperature extremes; (5)Low stray capacitance ensures high conformity with nominal values, thereby simplifying the circuit design process; (6)Low residual inductance assures superior frequency characteristics; (7)Because electrostatic capacity has been obtained up to the electrolytic capacitor range, these capacitors offer long service life and are optimally suited for power supply designs that require high levels of reliability; (8)Owing to their low ESR and excellent frequency characteristics, these products are optimally suited for high frequency and highdensity type power supplies.

Diagrams

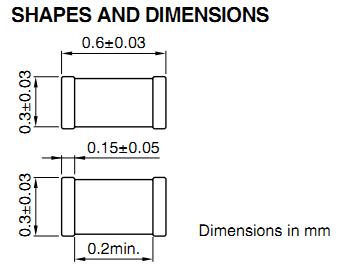

C4532JB1E226M dimension
