Product Summary

The C0805C189C5GAC7800 is a Surface Mount Multilayer Ceramic Chip Capacitor. KEMET’s C0G dielectric features a 125℃ maximum operating temperature and is considered “stable”. The Electronics Components, Assemblies & Materials Association (EIA) characterizes C0G dielectric as a Class I material. Components of this classification are temperature compensating and are suited for resonant circuit applications or those where Q and stability of capacitance characteristics are required. The C0805C189C5GAC7800 exhibits no change in capacitance with respect to time and voltage and boasts a negligible change in capacitance with reference to ambient temperature. Capacitance change is limited to ±30 ppm/℃ from -55℃ to +125℃. The applciations of the C0805C189C5GAC7800 include critical timing, tuning, circuits requiring low loss, circuits with pulse, high current, decoupling, bypass, filtering, transient voltage suppression, blocking and energy storage.

Parametrics

C0805C189C5GAC7800 absolute maximum ratings: (1)Operating Temperature Range: -55℃ to +125℃; (2)Capacitance Change with Reference to +25℃ and 0 VDC Applied (TCC): ±30 ppm/℃; (3)Aging Rate (Maximum % Capacitance Loss/Decade Hour): 0%; (4)Dielectric Withstanding Voltage (DWV): 250% of rated voltage (5 ±1 seconds and charge/discharge not exceeding 50 mA); (5)Dissipation Factor (DF) Maximum Limit @ 25℃: 0.1%; (6)Insulation Resistance (IR) Limit @ 25℃: 1,000 megohm microfarads or 100 GΩ (Rated voltage applied for 120 ±5 seconds @ 25℃).

Features

C0805C189C5GAC7800 features: (1)-55℃ to +125℃ operating temperature range; (2)RoHS Compliant; (3)EIA 0201, 0402, 0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220, and 2225 case sizes; (4)DC voltage ratings of 10 V, 16 V, 25 V, 50 V, 100 V, and 200 V; (5)Capacitance offerings ranging from 0.5 pF up to 0.47μF; (6)Available capacitance tolerances of ±0.10 pF, ±0.25 pF, ±0.5 pF, ±1%, ±2%, ±5%, ±10%, and ±20%; (7)No piezoelectric noise; (8)Extremely low ESR and ESL; (9)High thermal stability; (10)High ripple current capability; (11)Preferred capacitance solution at line frequencies and into the; (12)MHz range; (13)No capacitance change with respect to applied rated DC voltage; (14)Negligible capacitance change with respect to temperature from; (15)-55℃ to +125℃; (16)No capacitance decay with time; (17)Non-polar device, minimizing installation concerns; (18)100% pure matte tin-plated termination finish allowing for excellent solderability; (19)SnPb plated termination finish option available upon request (5% minimum).

Diagrams

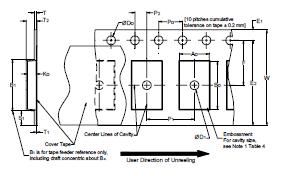

C0805C189C5GAC7800 block diagram
