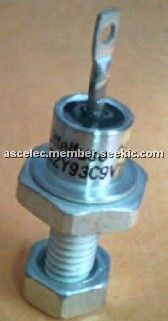

Product Summary
The BZY93C9V1 is regulator diodes belongs to the BZY93 series. A range of diffused silicon diodes in DO-4 metal envelopes, intended for use as voltage regulator and transient suppressor diddes in power stablization and transient suppression circuits. The BZY93 series consist of the following types such as normal polarity(cathode to stud, BZY93-C7V5 TO BZY93-C75 ) and reverse polarity (anode to stud, BZY93-C7V5R TO BZY93-C75R).
Parametrics
Absolute maximum ratings:(1)peak working current, Izm: the max value is 20A; (2)Average forward current, If(av): the max value is 5A; (3)Non-repetive peak reverse current, Tj=25℃ prior to surge, Tp=1ms, Irsm: the max value is 6 to 55A; (4)Total power dissipation, up to Tmb=75℃, Ptot: the max value is 20W; (5)Non-repetive peak reverse power dissipation, Tj=25℃ prior to surge, Tp=1ms, Prsm: the max value is 700W; (6)storage tempreture, Tstg: -55 to 175℃; (7)junction tempreture, Tj: the max value is 175℃.
Features
Features:(1)For non-repetive transients , the device may be used without a heatsink for pulses up to 10ms in duration; (2)For repetive transients which fall within the permitted operation range.

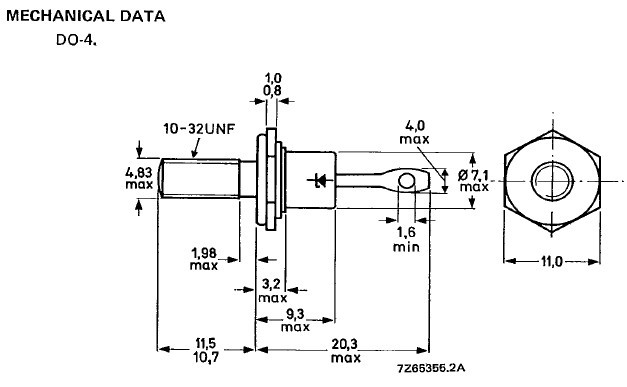

Diagrams
