Product Summary

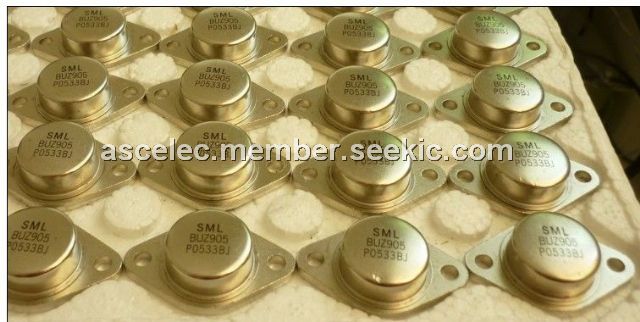

The BUZ905 is P-channel power MOSFET. It is generally used as power MOSFETs for audio application. It is featured with high speed switching, semefab designed and diffused. This device has a high voltage consumption up to 160V.
Parametrics
Absolute maximum ratings:(1)Drain – Source Voltage, VDSX: –160V; (2)Gate – Source Voltage, VGS: ±14V; (3)Continuous Drain Current, ID: –32A; (4)Body Drain Diode, ID(PK): –32A; (5)Total Power Dissipation @ Tcase = 25℃, PD: 500W; (6)Storage Temperature Range, Tstg: –55 to 150℃; (7)Maximum Operating Junction Temperature, Tj: 150℃; (8)Thermal Resistance Junction – Case, RqJC: 0.3℃/W.
Features
Features:(1)high speed switching; (2)P–channel power MOSFET; (3)semefab designed and diffused; (4)high voltage (160V & 200V); (5)high energy rating; (6)enhancement mode; (7)integral protection diode; (8)N–channel also available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 BUZ905DP |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
BUZ905P |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
BUZ905X4S |
Other |
|
Data Sheet |
Negotiable |
|
||||
