Product Summary

The BR9040-W is a serial EEPROM that can be connected directly to a serial port and can be erased and written electrically. Writing and reading is performed in word units, using four types of operation commands. Communication occurs through CS, SK, DI, and DO pins, WC pin control is used to initiate a write disabled state, enabling these EEPROMs to be used as one-time ROMs. During writing, operation is checked via the internal status check.

Parametrics

BR9040-W absolute maximum ratings: (1)Applied voltage, VCC: -0.3 to 7.0V; (2)Power dissipation, PD: 500mW; (3)Storage temperature, Tstg: -65 to 125℃; (4)Operation temperature, Topr: -40 to 85℃; (5)Input voltage: -0.3 to VCC+0.3V.

Features

BR9040-W features: (1)256 words × 16 bits; (2)Single power supply operation; (3)Serial data input and output; (4)Automatic erase-before-write; (5)Low current consumption: 1.5mA (max.) active current: 3V; 2μA (max.) standby current: 3V; (6)Noise filter built into SK pin; (7)Compact DIP8, SOP8, SSOP-B8 packages (SSOP-B8 is available only with BR9010); (8)100,000 ERASE / WRITE cycles; (9)10 years Data Retention; (10)Easily connects to serial port.

Diagrams

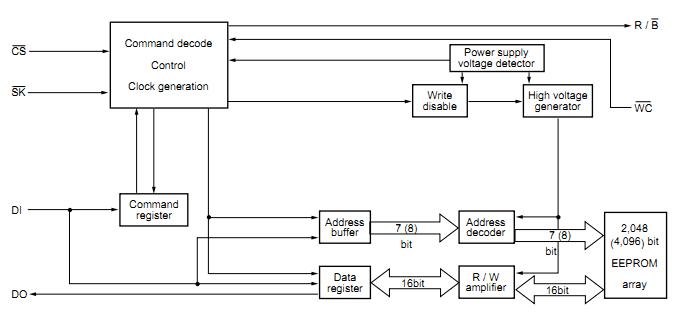

BR9040-W block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

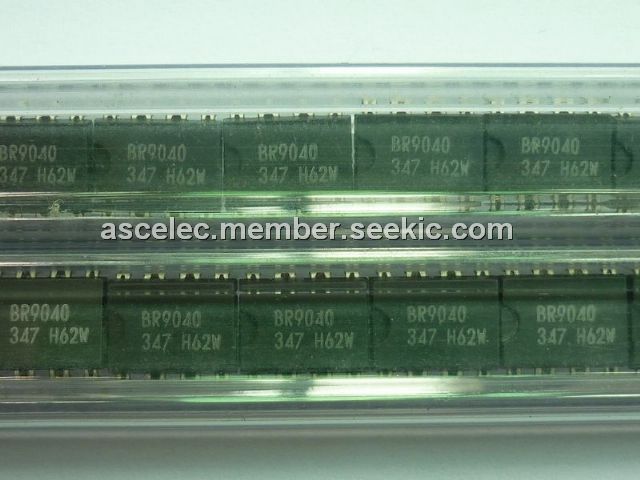

BR9040-W
BR9040-W

Other


Data Sheet

Negotiable
