Product Summary

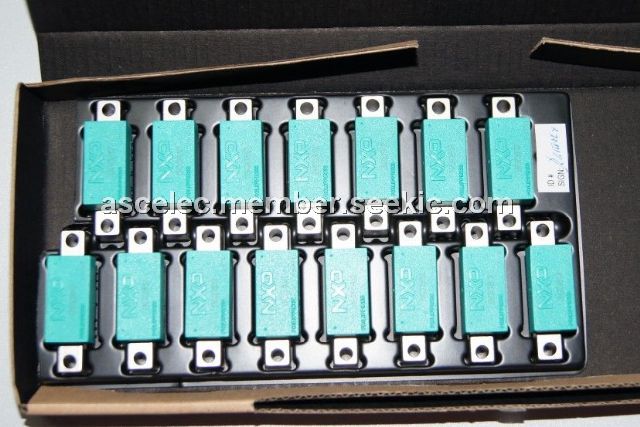

The BGD812 is a Hybrid amplifier module in a SOT115J package operating with a voltage supply of 24 V (DC). The applciations of the BGD812 include CATV systems operating in the 40 to 870 MHz frequency range.
Parametrics
BGD812 absolute maximum ratings: (1)VB, supply voltage: 30 V; (2)Vi, RF input voltage: 70 dBmV; (3)Tstg, storage temperature: -40 to +100℃; (4)Tmb, operating mounting base temperature: -20 to +100℃.
Features
BGD812 features: (1)Excellent linearity; (2)Extremely low noise; (3)Excellent return loss properties; (4)Silicon nitride passivation; (5)Rugged construction; (6)Gold metallization ensures excellent reliability.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() BGD812 |
![]() NXP Semiconductors |
![]() RF Amplifier BULK CATV |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||
![]() |
![]() BGD812,112 |
![]() NXP Semiconductors |
![]() RF Amplifier BULK CATV |
![]() Data Sheet |
![]()
|
|
