Product Summary
The BB212 is a variable capacitance double diode with a common cathode, fabricated in planar technology, and encapsulated in the TO-92 variant leaded plastic package. The applications of the BB212 include Electronic tuning in AM radio applications, VCO.
Parametrics
BB212 absolute maximum ratings: (1)VR, continuous reverse voltage: 12 V; (2)IF, continuous forward current: 100 mA; (3)Tstg, storage temperature: -55 to +100℃; (4)Tj, operating junction temperature: -55 to +85℃.
Features
BB212 features: (1)Leaded plastic package; (2)C8: 19 pF; ratio: 29.

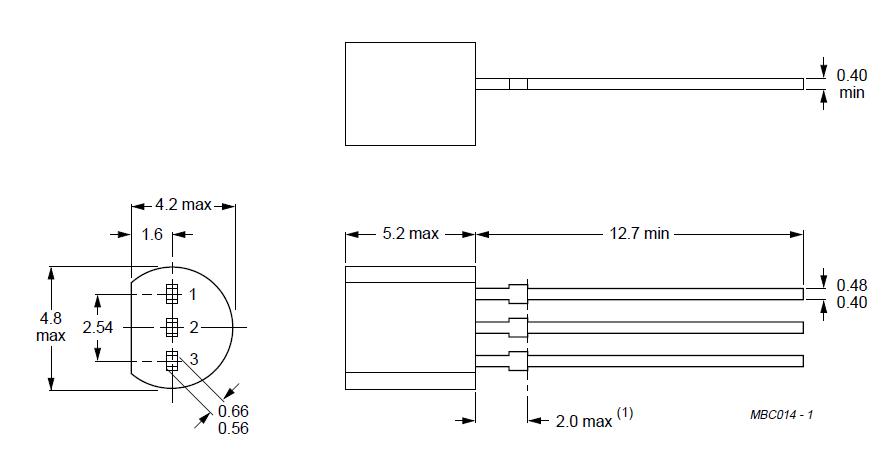

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() BB212 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||
