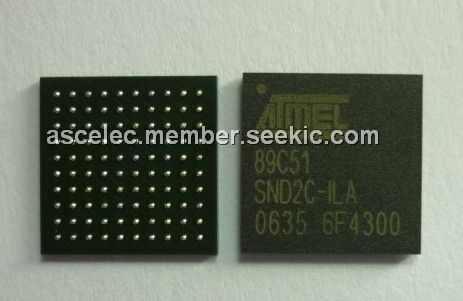

AT89C51SND2C-ILA

Product Summary

The AT89C51SND2C-ILA has been developed for handling MP3 ringing tones in mobile phones and can replace sound generators while adding SD/MMC card reader, MP3 music decoding, and connection of the cell phone to a PC through USB. Cell phones can also be used as a thumb drive extending cell phone capabilities. The AT89C51SND2C-ILA is fully integrated stand-alone hardwired MPEG I/II-Layer 3 decoder with a C51 microcon-troller core handling data flow, MP3-player control, Stereo Audio DAC and Mono Audio Power Amplifier for speaker control. The AT89C51SND2C-ILA includes 64K Bytes of Flash memory and allows In-System Programming through an embedded 4K Bytes of Boot Flash memory. The AT89C51SND2C-ILA includes 64K Bytes of ROM memory. The AT89C51SND2C-ILA include 2304 Bytes of RAM memory. The AT8xC51SND2C provides the necessary features for human interface like timers, keyboard port, serial or para-llel interface (USB, TWI, SPI, IDE), I2S output, and all external memory interface (NAND or NOR Flash, SmartMedia, MultiMedia, DataFlash cards).

Parametrics

Absolute maximum ratings:(1)Storage Temperature: -65 to +150°C; (2)Voltage on any other Pin to VSS:-0.3 to +4.0V; (3)IOL per I/O Pin: 5 mA; (4)Power Dissipation: 1W; (5)Operating Conditions of Ambient Temperature Under Bias: -40 to +85°C; (6)Operating Conditions of VDD: 2.7 to 3.3V.

Features

Features:(1)MPEG I/II-Layer 3 Hardwired Decoder; (2)20-bit Stereo Audio DAC; (3)Programmable Audio Output for Interfacing with External Audio System; (4)Mono Audio Power Amplifier; (5)8-bit MCU C51 Core Based (FMAX = 20 MHz); (6)2304 Bytes of Internal RAM; (7)64K Bytes of Code Memory; (8)4K Bytes of Boot Flash Memory (AT89C51SND2C); (9)USB Rev 1.1 Controller; (10)Built-in PLL; (11)MultiMedia CardInterface Compatibility; (12)Atmel DataFlashSPI Interface Compatibility; (13)IDE/ATAPI Interface; (14)Up to 32 Bits of General-purpose I/Os; (15)2 Standard 16-bit Timers/ Counters; (16)Hardware Watchdog Timer; (17)Standard Full Duplex UART with Baud Rate Generator; (18)Two Wire Master and Slave Modes Controller; (19)SPI Master and Slave Modes Controller; (20)Power Management; (21)Packages: CTBGA100.

Diagrams
