AT28C64B-15PU

programmable read only memory, DIP28, -0.6V to +6.25V, Low Power Dissipation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.00

PartNumber:: AT28C64B-15PU

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. shanna wei's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-07

From Other Seller

Part Number:AT28C64B-15PU
US $1.00 - 1.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

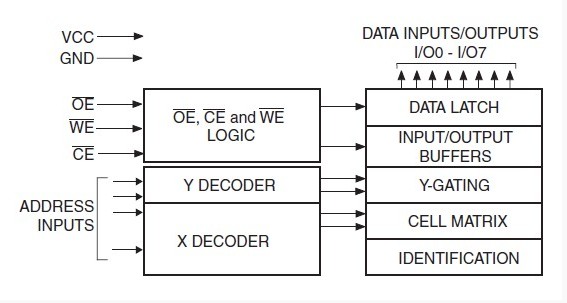

The AT28C64B-15PU is a high-performance electrically-erasable and programmable read only memory (EEPROM). Its 64K of memory is organized as 8,192 words by 8 bits. Manufactured with the advanced nonvolatile CMOS technology of Atmel, the device offers access times to 150 ns with power dissipation of just 220 mW. When the AT28C64B-15PU is deselected, the CMOS standby current is less than 100 μA. The device contains a 64-byte page register to allow writing of up to 64 bytes simultaneously. It utilizes internal error correction for extended endurance and improved data retention characteristics.

Parametrics

AT28C64B-15PU absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages(including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on OE and A9 with Respect to Ground: -0.6V to +13.5V.

Features

AT28C64B-15PU features: (1)Fast Read Access Time -150 ns; (2)Automatic Page Write Operation-Internal Address and Data Latches for 64 Bytes; (3)Low Power Dissipation: 40 mA Active Current; 100 μA CMOS Standby Current; (4)Hardware and Software Data Protection; (5)DATA Polling and Toggle Bit for End of Write Detection; (6)Single 5V ±10% Supply; (7)CMOS and TTL Compatible Inputs and Outputs; (8)JEDEC Approved Byte-wide Pinout; (9)Industrial Temperature Ranges; (10)Green (Pb/Halide-free) Packaging Option.
