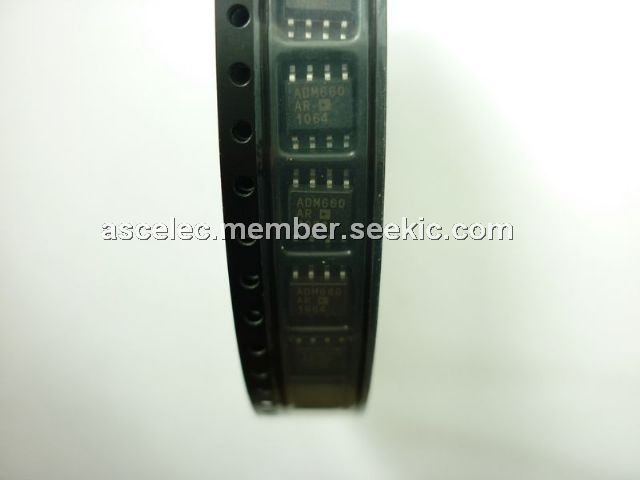

ADM660AR

SOP-8, charge-pump voltage converter, 50 mA, +1.5 V to +7 V Supply, 25 kHz/120 kHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.00

PartNumber:: ADM660AR

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. shanna wei's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-07

From Other Seller

Part Number:ADM660AR
US $1.00 - 1.00
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ADM660AR is a charge-pump voltage converter that can be used to either invert the input supply voltage giving VOUT = –VIN or double it (ADM660 only) giving VOUT = 2 × VIN. Input voltages ranging of the ADM660AR from +1.5 V to +7 V can be inverted into a negative –1.5 V to –7 V output supply. This inverting scheme is ideal for generating a negative rail in single power supply systems. Only two small external capacitors are needed for the charge pump. Output currents up to 50 mA with greater than 90% efficiency are achievable, while 100 mA achieves greater than 80% efficiency.

Parametrics

ADM660AR absolute maximum ratings: (1)Input Voltage (V+ to GND, GND to OUT): +7.5 V; (2)LV Input Voltage: (OUT – 0.3 V) to (V+, +0.3 V); (3)FC and OSC Input Voltage: (OUT – 0.3 V) or (V+, –6 V) to (V+, +0.3 V); (4)OUT, V+ Output Current (Continuous): 120 mA; (5)Output Short Circuit Duration to GND: 10 secs; (6)Power Dissipation, N-8: 625 mW (Derate 8.3 mW/℃ above +50℃); (7)Thermal Impedance: 120℃/W; (8)Power Dissipation R-8: 450 mW (Derate 6 mW/℃ above +50℃); (9)Thermal Impedance: 170℃/W; (10)Power Dissipation RU-16: 500 mW (Derate 6 mW/℃ above +50℃); (11)Thermal Impedance: 158℃/W; (12)Operating Temperature Range Industrial (A Version): –40 to +85℃; (13)Storage Temperature Range: –65 to +150℃; (14)Lead Temperature Range (Soldering 10 sec): +300℃; (15)Vapor Phase (60 sec): +215℃; (16)Infrared (15 sec): +220℃; (18)ESD Rating: >2000 V.

Features

ADM660AR features: (1)ADM660: Inverts or Doubles Input Supply Voltage; (2)100 mA Output Current; (3)Shutdown Function (ADM8660); (4)2.2 μF or 10 μF Capacitors; (5)0.3 V Drop at 30 mA Load; (6)+1.5 V to +7 V Supply; (7)Low Power CMOS: 600 mA Quiescent Current; (8)Selectable Charge Pump Frequency (25 kHz/120 kHz); (9)Pin Compatible Upgrade for MAX660, MAX665, ICL7660; (10)Available in 16-Lead TSSOP Package.
